FPD Process
HORIBA have fostered various analysis, control, and evaluation technologies for the silicon semiconductor manufacturing processes; a field where strict specifications must be satisfied.
HORIBA makes full use of these technologies in the field of FPD processing. These technologies provide manufacturing support for various types of processes, including gas and liquid medication composition, the detection of particles on masks and thin film measurement. These technologies are also being applied to high-performance analytical and control equipment that supports the research and development of PDPs, organic EL, FEDs, and the diversifying and evolving field of FPDs.
Related Products

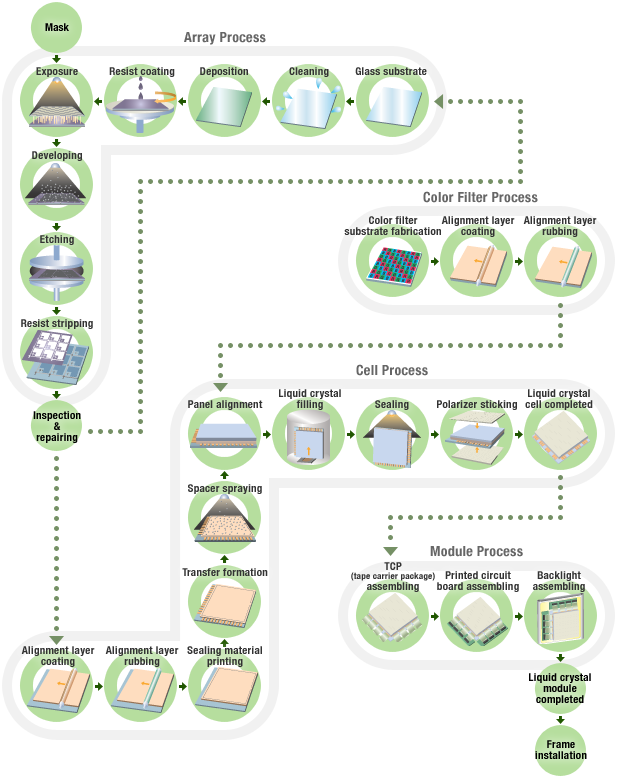

Below you can see the different stages during the FPD production process. Please click on each phase in order to see the products that are avaialble to you during this stage.
DI Water Analysis/Waste Water Monitoring
Measure the ultra-low density of silica at the finest sensitivity of 0.01 µg/L (0.01 ppb).
Material Analysis
The GD-Profiler 2™ provides fast, simultaneous analysis of all elements of interest including the gases nitrogen, oxygen, hydrogen and chlorine. It is an ideal tool for thin film characterization and process studies.
High spectral resolution analytical Raman microscope for ultimate performance and flexibility; includes UV Raman configuration, full automation and wide range of accessories.
Single point analysis and automated hyperspectral imaging.
Dual vacuum modes.
Spot sizes from 1.2 mm to 10 µm.
Redirecting to Chemical Concentration Monitors page
Fluid Control
Mass Flow Controllers (Redirects to Mass Flow Controllers Page) |
Pressure Controllers (Redirects to Pressure Controllers Page) |
Liquid Source Vaporization (Redirects to Liquid Source Vaporization Page) |
Gas Concentration Monitoring
High senility in-line gas monitor of SiF4 and CF4 for chamber cleaning end point monitoring in deposition process. Reduce clean time and gas usage by real-time monitoring.
In-line compact vapor concentration monitor, enables MOCVD precursor delivery to be stable.
Process Gas Monitoring
Compact process gas monitor using quadrupole mass spectrometer. Monitors trace gases, responds quickly to process shift . Easy to install and maintain.
Thin Film Control/Analysis
Emission analysis type end-point monitor intended for end-point detection or plasma condition control in the plasma-based semiconductor thin-film process.
The ultimate solution to every challenge in thin film measurement
CMP Process
The LA-960V2 uses Mie Scattering (laser diffraction) to measure particle size of suspensions or dry powders. The speed and ease-of-use of this technique makes it the popular choice for most applications.
Drain Water Analysis
The IF-250 Simple Fluoride Ion Monitor for use in industry provides continuous measurements of the free fluoride ion concentration in waste water and other test samples using the fluoride ion electrode method.
The unit can be used on a range of test samples with varying concentrations from 0.0 to 10.0 mg / L up to 0 to 10,000 mg / L. This makes the IF-250 the ideal unit for monitoring the treatment of waste water and effluent resulting from the semiconductor production process, as well as electronic and glass factories using fluoride in the production process.
